Pin Configuration Detection
Instantly identifies the correct pin layout for various relay types, saving valuable troubleshooting time.
- Free shipping
- 14-day easy returns
- Secure checkout
- Quality guaranteed
1 / 7
Why customers love it
Diagnose vehicle electrical faults with precision

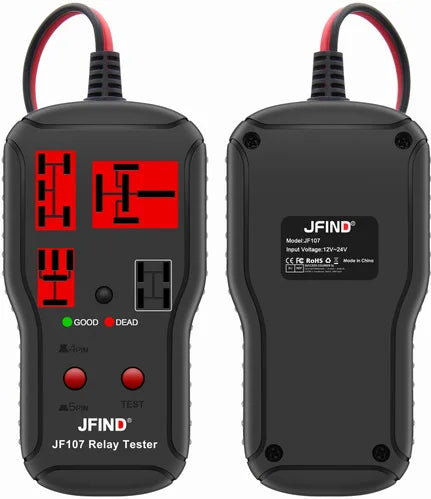

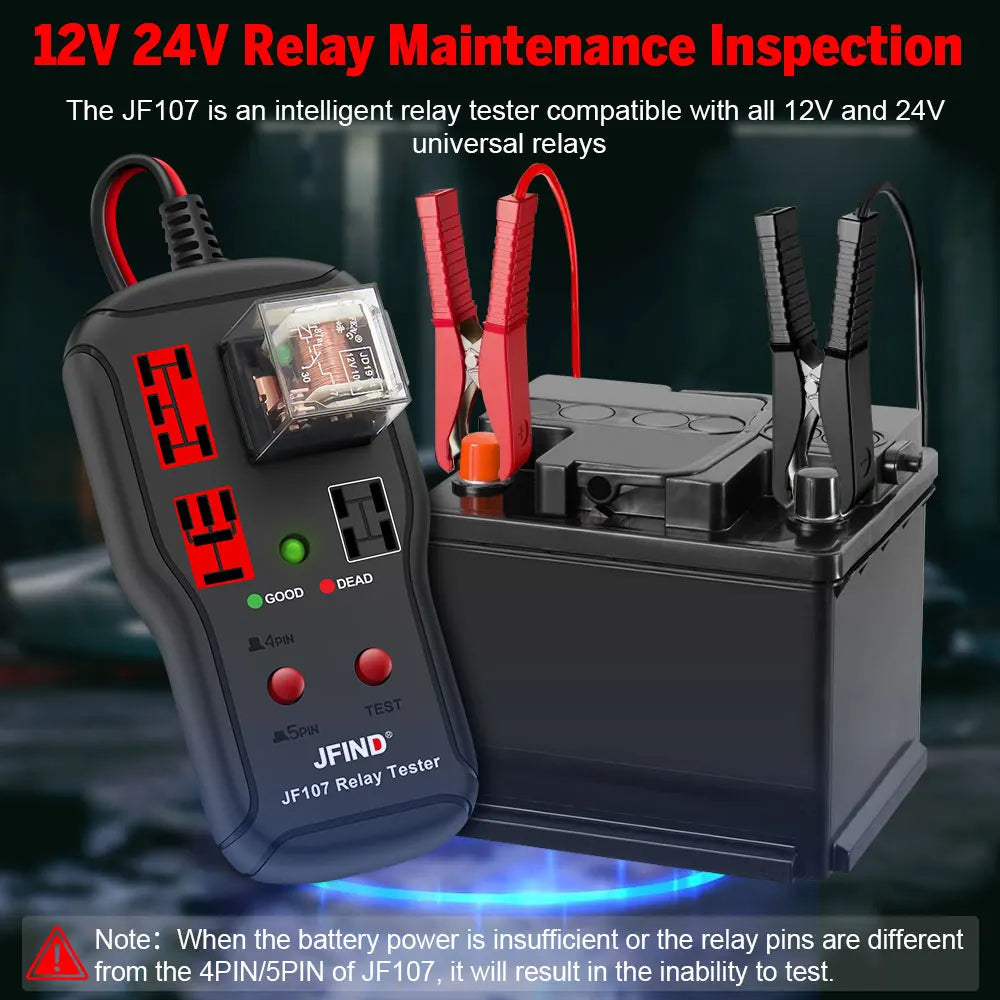

Bring confidence to your automotive repairs with this universal relay tester, designed to quickly and accurately diagnose issues in both 12V and 24V systems.

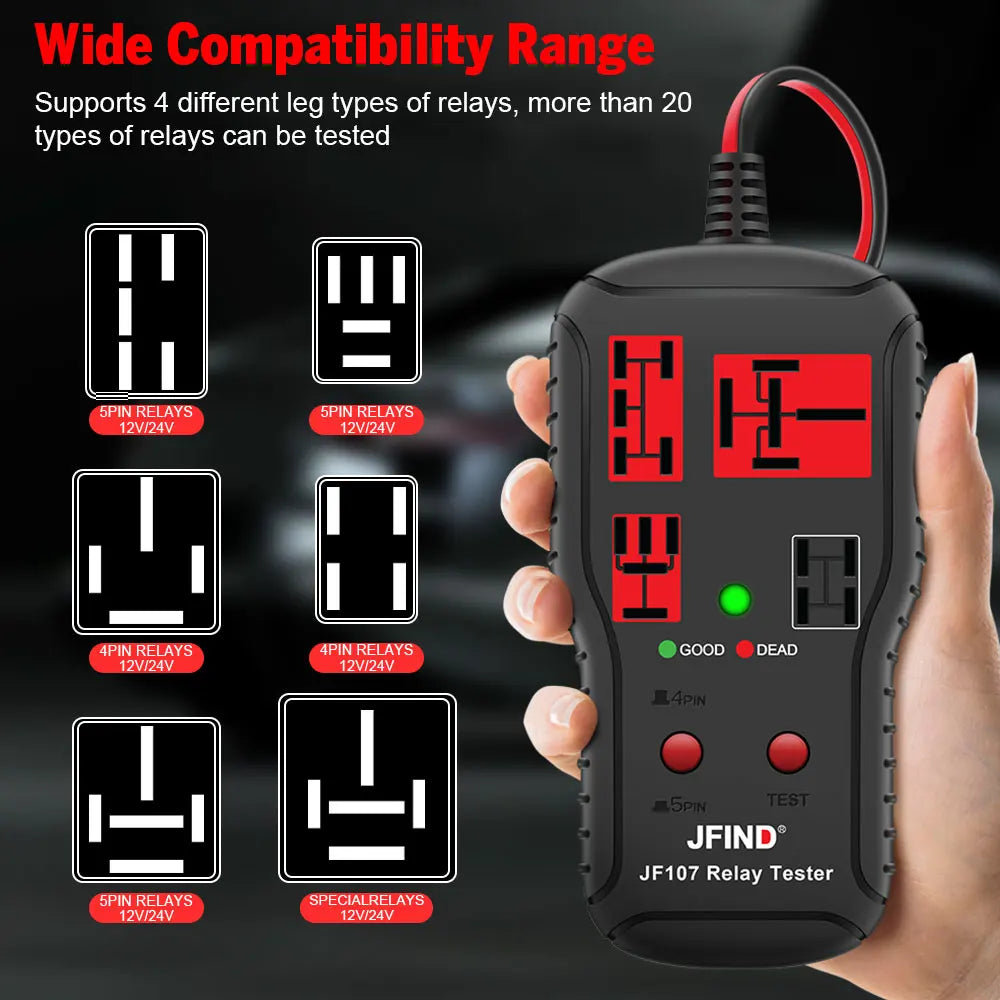

- Automatically identifies 4-pin and 5-pin relay configurations
- Tests coil resistance, action time, and switching consistency
- Provides clear LED feedback for immediate fault identification
- Works reliably across a wide range of automotive relays
Precision Diagnostics at Your Fingertips
Comprehensive Performance Check
Accurately measures coil resistance and switching consistency to pinpoint the exact source of the failure.
Clear Fault Indicators
Utilizes distinct green and red LEDs to give you immediate, unambiguous feedback on relay operation.
Setup

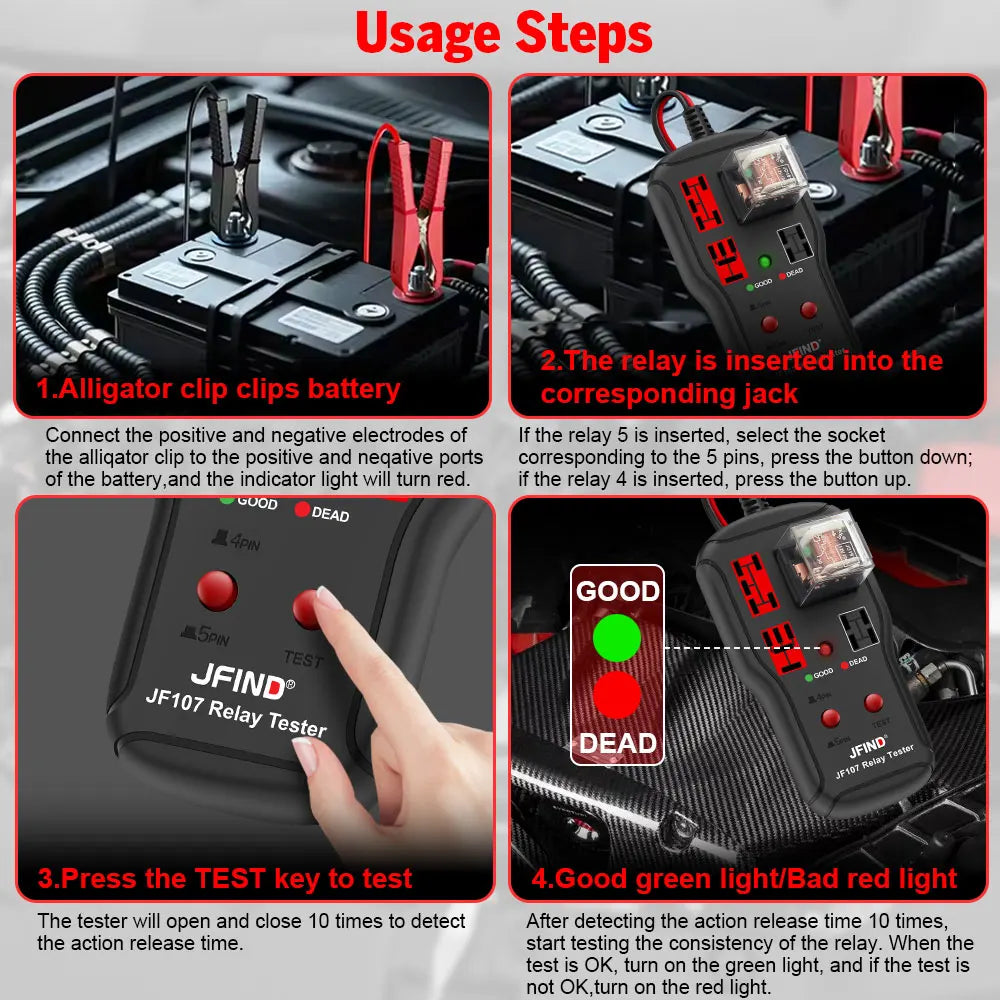

Testing in 3 Simple Steps
A straightforward process for reliable relay diagnosis.
-

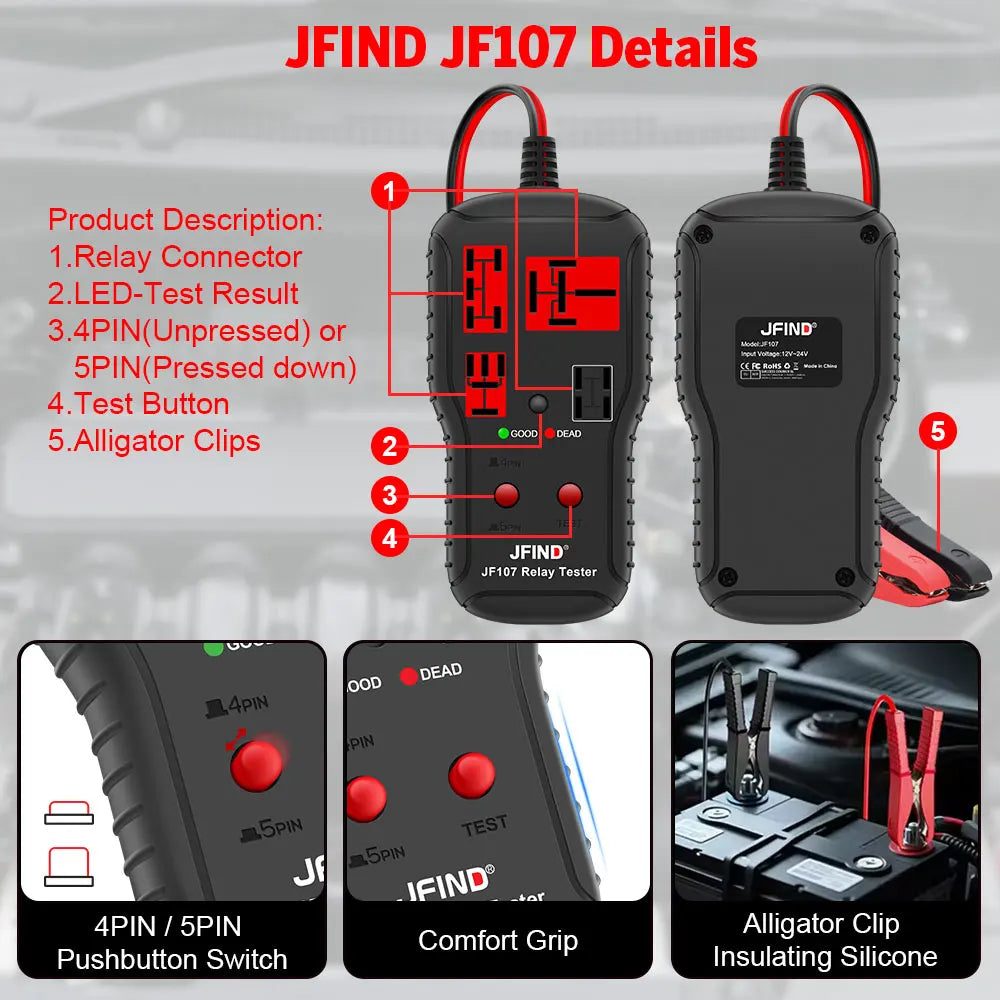

Connect the Clip
Securely attach the alligator clip to the battery terminal of your vehicle.
-
Apply Power
Connect the tester to the relay circuit to begin the diagnostic sequence.
-
Analyze Results
Observe the LED indicators to determine if the relay is operating normally or experiencing a fault.
Technical Details

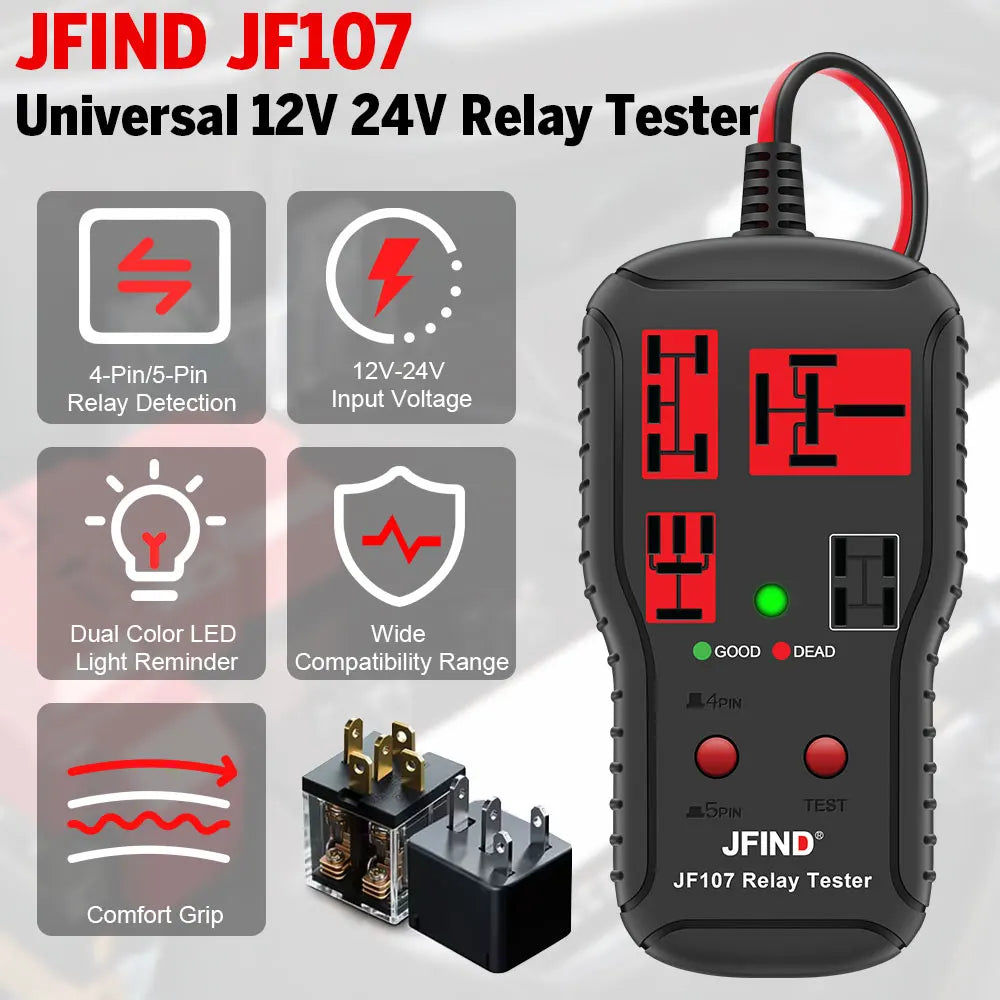

Key Specifications
Understanding the capabilities of the universal tester.
- Voltage Compatibility
- 12V and 24V systems
- Detected Configurations
- 4-pin and 5-pin relays
- Power Range
- 11V–25V
- Indicator Type
- Green (Normal) / Red (Fault)

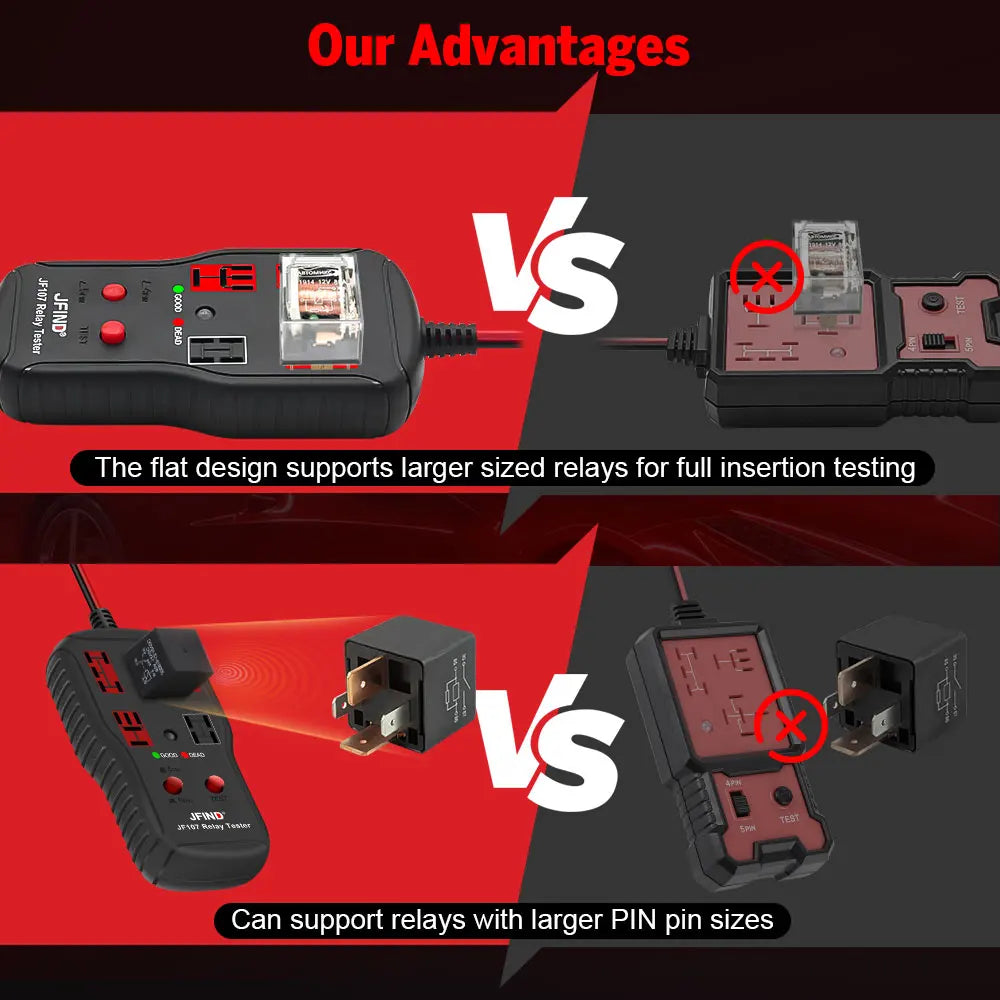

Why Choose This Tester
Beyond Basic Multimeters
The advantage of specialized relay testing.
Feature
Universal Relay Tester
Generic Multimeter Check
Diagnostic Depth
Tests coil resistance and timing.
Only measures basic voltage/continuity.
Configuration Awareness
Automatically identifies pin layouts.
Requires manual guesswork for pinouts.
Fault Clarity
Uses specific LED signals.
Relies solely on numerical readings.
Our worry-free shopping promise
If your order arrives damaged, defective, or not as described, contact us within 14 days and we will make it right with a replacement or refund.
Frequently Asked Questions
Solving common relay testing concerns.
Can this tester work on relays outside of standard automotive applications?
This tool is specifically designed and calibrated for standard automotive relay systems. It is best used for diagnosing relays found in vehicle or similar electrical setups.
What happens if the LED shows a fault?
A red LED indicates an issue, such as incorrect coil resistance or timing problems. Consult a professional mechanic for repair guidance.
Is the tester suitable for DIY enthusiasts?
Yes, it is ideal for DIY car enthusiasts and auto repair shops looking for a reliable, quick diagnostic tool to troubleshoot electrical issues.
